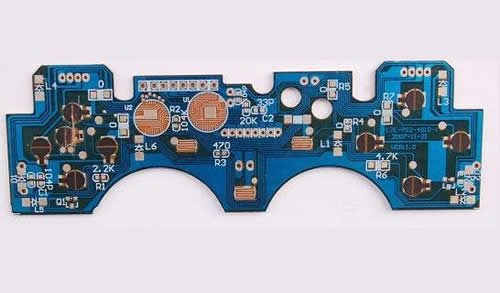

| 游戏机OSP单面PCB |
 |
1.production
name :Game board
PCB
2.IPC
standar : IPC-A-600G
3.Board
thickness :0.2mm-6.0mm
4.Laminate
: FR-4,Taconic,Rogers,TG170,TG180,CEM-1.
5.Layers
:SS,DS,ML,Single
side,Double side,Multilayer,1-24Layer
6.Outer
/ inner Coppers:
1/1 oz,1/2 oz,2/2
oz,2 oz,3 oz,4 oz.
7.Multilayer
stack up :Stack
up,controlled impedence.
8.Pcb
size :unit size,panel
size,tooling strips,tooling
holes and fudicials.
9.Min
hole size :0.2mm
(Shape
tolerance±0.13mm,hole
tolerance :PTH±0.075mm
;NPTH :±0.05mm)
10.Min
line width :0.1mm
11.Min
line spacing :0.1mm
12.Solder
mask color :Green,Blue,Red,Black,Yellow,White
13.Legend
color :White,Yellow,Black,Blue,Red
14.Surface
finshed :HAL(Tin
/ Lead),HAL(Lead
Free),Immersion
gold,Immersion Silver,
Immersion
Tin,Gold
Plated(Soft
Gold),OSP(ENTEK).
15.Certificate
:UL,ISO9001,ISO14001,SGS,RoHS,QS9000.
16.Profiling
:CNC,Routing,Punching,Beveling,V-cut,V-score,Counter
sink.
17.Test
:E-test,Fixture,Fly-test.
18.Special
technique
:Buried
and
bling
vias,controlled
impedance,BGA.
19.Package
:Vacuum
package,Seal
package.
20.Shipping
:FOB
HongKong,CIF,Air
Transportation,DHL,UPS,Fedex. |
|
 |
|
